Full View Sight Glass Manufacturer in Mumbai India

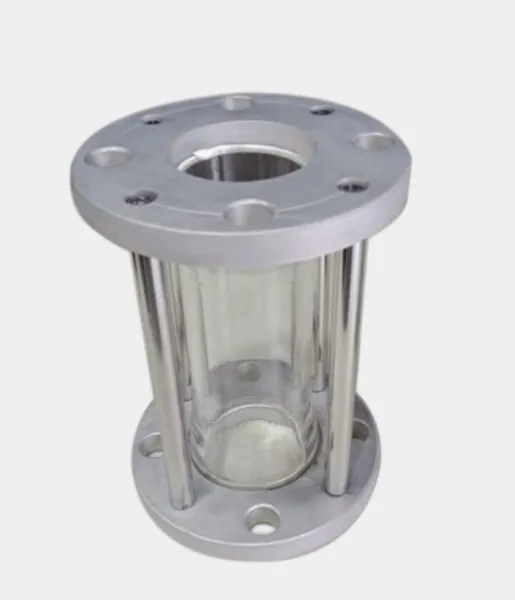

Full View Sight Glass, made by Asre Engineering, is a tool for checking pipeline flow. It is put into a flowing pipeline to watch the liquid’s flow. It is employed in a wide range of contexts. It is appropriate for a range of tough industrial applications. In order to view the very low flow of liquid, the drip tubes of the Full View Sight Glass are frequently included in the flow steam. And in doing so, the flow’s visibility is improved.
Due to its bi-directional design, these sight glasses are simple to install in either direction. Any type of opaque pipeline can be installed in the center, either vertically or horizontally. A rapid, affordable, and reliable solution to confirm the flow of liquids through industrial process pipes is offered by Sight Flow Indicators. This sight glass makes it simple and practical to monitor the flow from any angle. Stainless steel is used to make end connectors and vertical supports in grades 304, 316, or 316 L.
This device’s heart, or central component, is a glass “borosilicate” cylinder. In such processes, when it is necessary to recognize the existence of media, sight glasses are employed. Additionally, in locations where it is essential to visually check color, clarity, turbidity, or other crucial properties. Full-view kinds Sight Glasses are frequently employed with media that contain corrosive chemicals, acids, and colorful liquids.
Specifications
- Material of Construction: Stainless Steel
- Standard sizes: 1″, 1-1/2″, 2″ & 3″ – consult factory for availability of other sizes
- Vacuum Rating: Full Vacuum
- Operating pressure & temperature: UP to 150 Degrees C
- Easy Maintenance
- Lower Cost
- Wide View Area to Inspect the Fluid
- Borosilicate glass standard
- Available in almost all M.O.C.
- Design & Testing As Per Mfg. Standard
- Connections Flange End, Screwed, Triclover Etc.
- Sizes: From 15 NB to 300 mm NB.
- Window: Toughened Borosilicate Glass.
Applications
- Food Industries (Chocolate, Sauce, etc.)
- Bath Soap Manufacturing Plant
- Lactam Application in Chemical Process Pipe Line
- Industrial Molten Sulfur / Sulphur Media
- Fertilizer Industries
- Polymer Manufacturing Plant
- Paint Manufacturing Plant and Industries
- Organic Chemical Manufacturing Plant
- High Viscous Process Media Application
- Bitumen / Asphalt / Coal tar Pipe Line
- Chemical Manufacturing Industries
- Pharmaceutical Plant
- Plasticizers and Resin Industries
